$281 Falcon SC81A RW/PA Door Closer | DA Cylinder | Slim Cover | Brass Finish
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Falcon |
| Type | Door Closer |
| Model | Falcon SC81A |
| Features | Commercial |
| Material | Aluminum |
| MPN | 43441 |
| Suitable For | Bathroom Door |

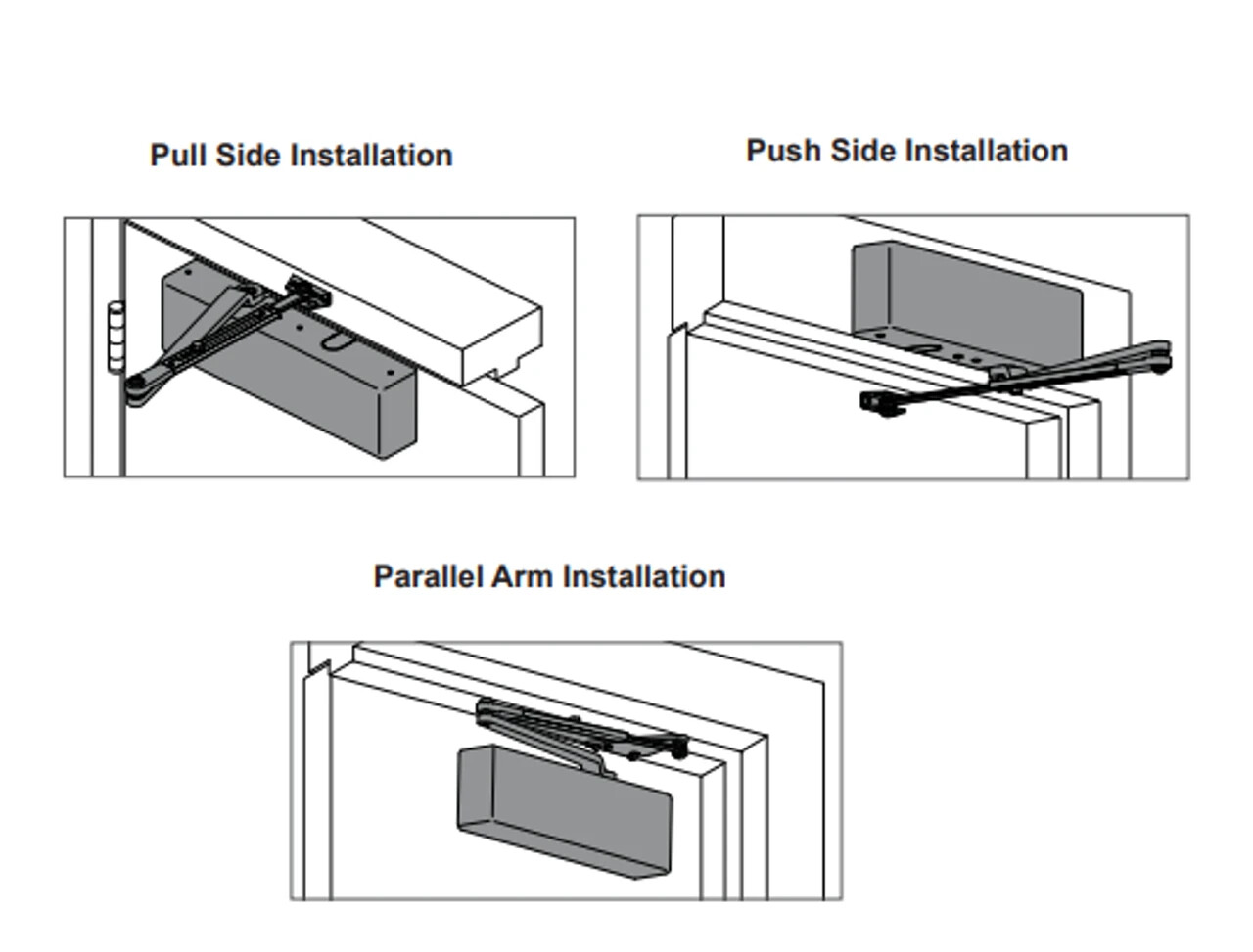

$281.00 MSRP SKU: SC81A RWPA-BRSERIES: SC80A - Medium DutySIZE: Adjustable 1-6 Falcon SC81A RWPA Door Closer - Regular Arm with parallel arm shoe Regular arm, Non-handed arm with adjustable forearm assembly to accommodate a range of doorsand frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoeincluded to allow installation in a parallel arm configuration. Cover: SLIM – Slim Cover. Cover will enclose the cylinder body with the exception of the unused pinion shaft.A shaft cover will be included to cover the unused pinion shaft. Cylinder Option: DEL – Delay Action Cylinder. (optional) Cylinder will provide consistent door control throughout the opening & closing cycle but includes an extra regulation valve that allows the door to slowly close (delay) as it begins to sends the door back to latch (approximately 70°). Independent backcheck, main speed and latch speed are field adjustable regulation valves and incorporated into the cylinder. Standard features: Single piece cast aluminum body Fully adjustable sizes 1-6 Separate adjustable general speed, latch speed and backcheck Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified Non-handed for left or right swinging doors 1 1⁄4" diameter heat treated steel piston Heat-treated pinion Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming, and tapping screws Staked valves Meets ANSI A117.1 ANSI/BHMA A156.4, grade 1 UL listed and compliant to UL10C and UBC 7-2 (1997) Cover is UL approved for use in fire rated assemblies 10-year warranty Retrofittable to Norton 8000 hole pattern Listings and ratings The Falcon SC81A is UL listed and compliant to UL10C and UBC 7-2 (1997). Additionally, the SC81A is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC81A is rated ANSI/BHMA A156.4, Grade 1.
