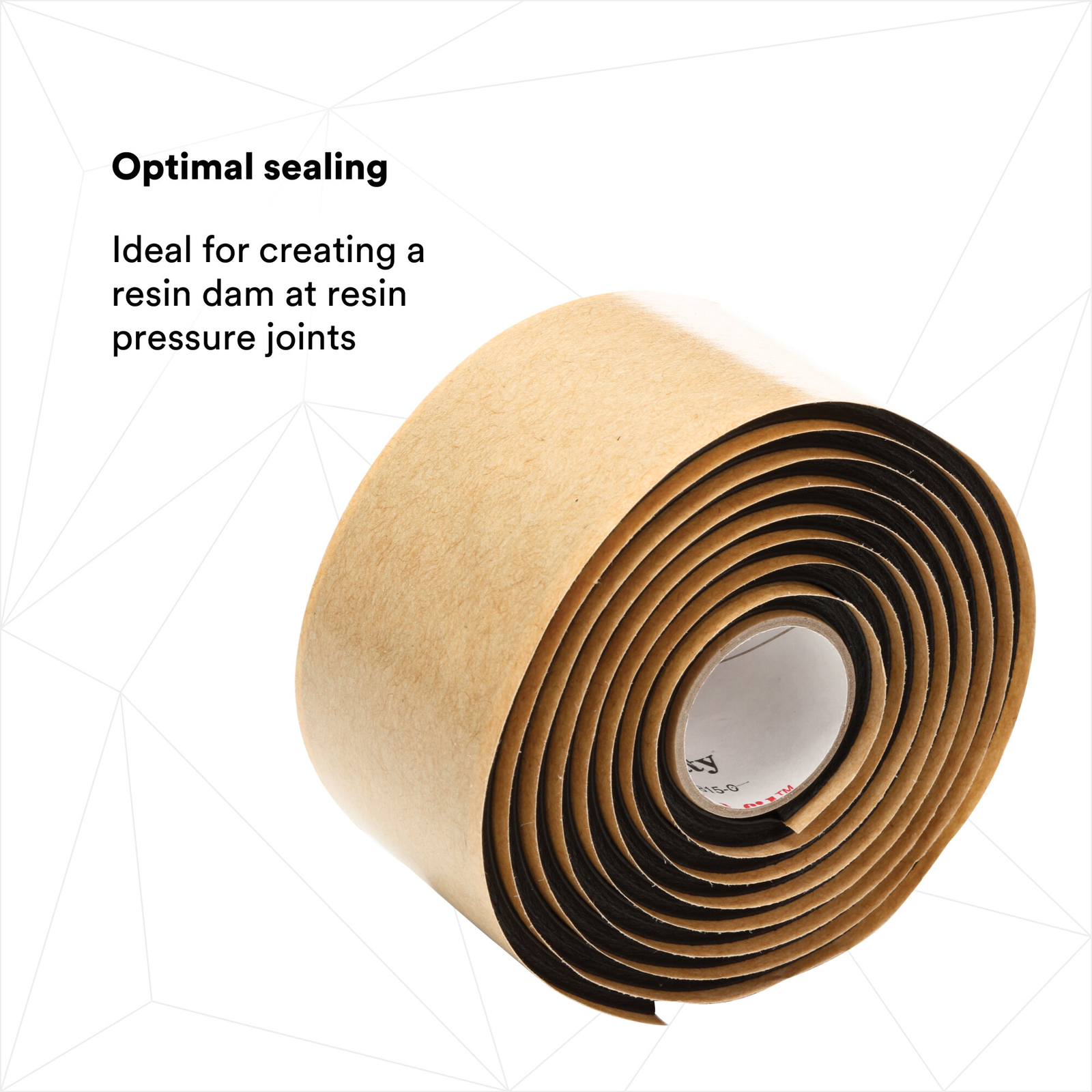

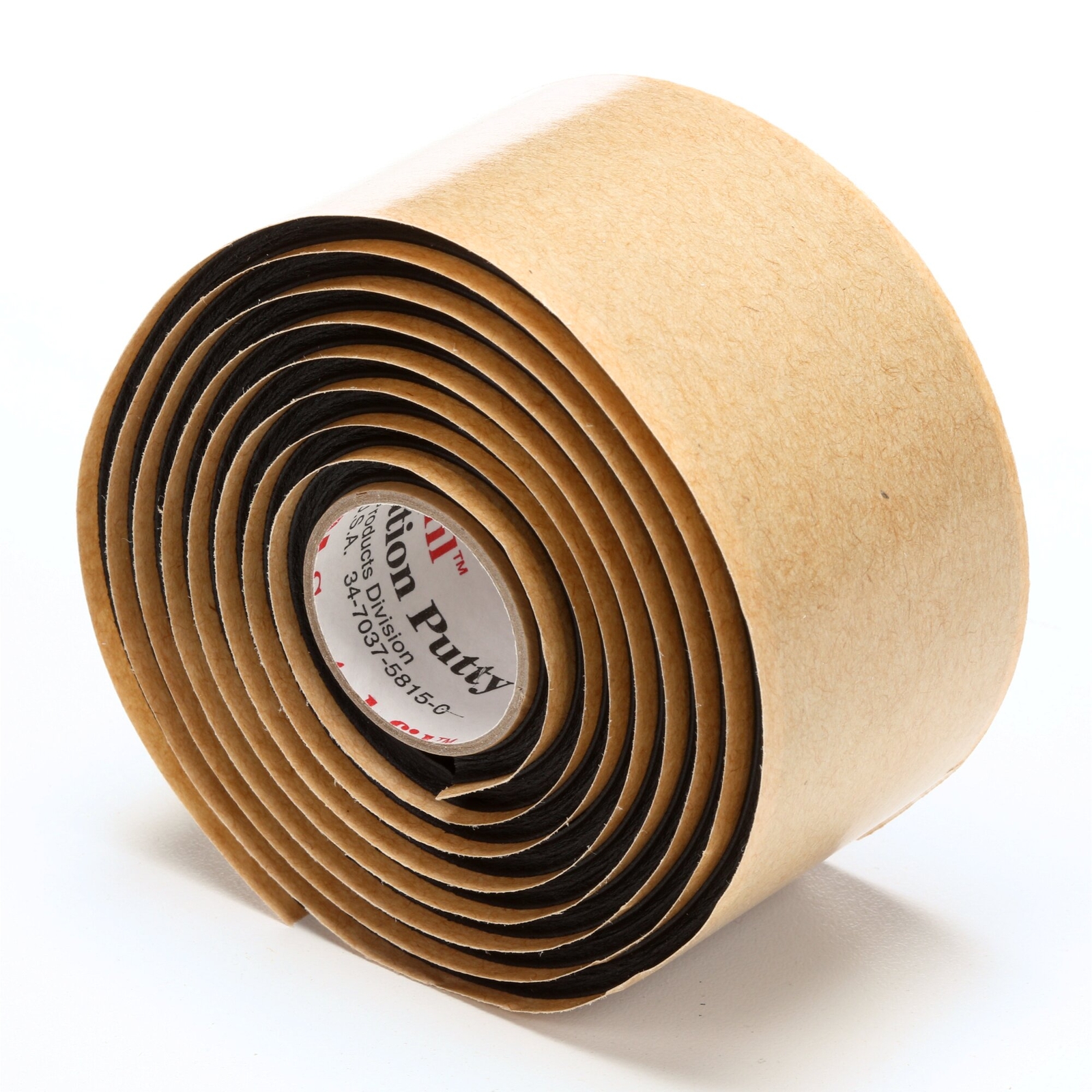

3M Scotchfil Electrical Insulation Putty, 1-1/2 in x 60 in, 1roll/carton
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Scotchfil™ |
| UPC | 00054007417507 |
| MPN | 7000006089 |
| Item Height | 5 cmcm |
| Item Width | 9.8 cm9.8 |
| Item Length | 9.8 cm9.8 |
| Adhesive Material | Mastic |
| Application | Sealing |
| Backing Thickness | 3.175 mm |
| Case Quantity | 12.0 Roll per Case |
| Dielectric Strength (V/mil) | 22000 |
| Elongation | 1000 % |
| High Temperature Rating | 176°F (80°C) |
| Insulated | Yes |
| Low Temperature Rating | 32°F (0°C) |
| Material | Electrical Grade Putty |
| Overall Length | 60 in, 1.524 m |
| Overall Width | 1.5 in, 38.1 mm |
| Product Color | Black |
| Product Type | Mastic tape |
| Self-sticking | Yes |
| Shelf Life | 5 Year |
| Tape Grade | Premium |
| Tape Length | 1.5 m |
| Tape Width | 38 mm |
| Temperature Protected Till | 80 Degree Celsius |
| Total Thickness | 3.175 mm |
| UV Resistant | Yes |
| Voltage Application | Low Voltage |
| EClass 14 Classification Group | 27400304 |
| Width | 3.86 in, 9.8 cm |
| Height | 1.97 in, 5 cm |
3M Scotchfil Electrical Insulation Putty, 1-1/2 in x 60 in, 1roll/carton Manufacturer:3M Part Number:7000006089 Use 3M Scotchfil Electrical Insulation Putty as a build-up compound on irregular surfaces like fittings and valves to create a smooth, waterproof taping surface. This electrical-grade tape is self-fusing and can be stretched to cover almost any shape. Our Electrical Insulation Putty insulates connections up to 600V and withstands temperatures of 32 to 176 degrees F (0 to 80 degrees C).3M™ Scotchfil™ Electrical Insulation Putty is a 125 mil thick, non corrosive, mastic adhesive that offers optimized adherence. This tape shaped putty has outstanding aging properties and is ideal for creating a resin dam at resin pressure joints. It helps to seal multi conductor cable connections, as well as wire exits at high voltage joints. RoHS 2011/65/EU Compliant.Non-corrosive mastic adhesive in a flexible tape formUL Listed and RoHS 2011/65/EU CompliantSuitable for temperatures from 32 to 176 °F (0 to 80 °C). Please allow 2 days for production. Sold as carton General Information BrandScotchfil™Product TypeMastic tapeTape TypeSealing and Insulating MasticCountry Of OriginUnited StatesSold AscartonLead Time2 daysDimensions and Specifications Backing Thickness (Metric)3.175 mmHigh Temperature Rating176°F (80°C)Low Temperature Rating32°F (0°C)Maximum Temperature Rating (Celsius)80 Degree CelsiusMaximum Temperature Rating (Fahrenheit)176 Degree FahrenheitMinimum Temperature Rating (Celsius)0 Degree CelsiusMinimum Temperature Rating (Fahrenheit)32 Degree FahrenheitOperating Temperature (Celsius)0 to 80 Degree CelsiusOperating Temperature (Fahrenheit)32 °F to 176 °FOverall Length (Imperial)60 inOverall Length (Metric)1.524 mOverall Width (Imperial)1.5 inOverall Width (Metric)38.1 mmSuitable For High VoltageNoTape Length (Metric)1.5 mTape Width (Metric)38 mmTemperature Protected Till80 Degree CelsiusTotal Thickness3.175 mmVoltage ApplicationLow VoltageOperating Temperature Celsius0 to 80 Degree CelsiusWidth3.86 in 9.8 cmHeight1.97 in 5 cmLength3.86 in 9.8 cmVolume29.3 cubic inch 480.2 cm3Weight7.84 oz 222.3 gOther Details Dielectric Strength (V/mil)22000Elongation1000 %Elongation At Break10InsulatedYesSelf-extinguishingNoSelf-stickingYesSolution ForWireless Network: Infrastructure AccessoriesTape GradePremiumUV ResistantYesVulcanizingNoFamily3M™ Scotchfil™ Black, Electrical Insulation PuttyUsage Information ApplicationSealingMaterial and Composition Adhesive MaterialMasticBacking MaterialElectrical Insulation PuttyMaterialElectrical Grade PuttyShelf Life5 YearColor and Appearance Product ColorBlackPackaging and Shipping Case Quantity12.0 Roll per Case About the Manufacturer At 3M, we apply science in collaborative ways to improve lives daily. 3M is a global science company that never stops inventing. Using 46 technology platforms, our integrated team of scientists and researchers works with customers to create breakthroughs. Our inventions have improved daily life for hundreds of millions of people all over the world. With $30 billion in sales, our 90,000 employees connect with customers all around the world. Scientists, researchers and marketers work across countries and across subjects to solve challenges big and small. Bulk Pricing For customers who wish to order large quantities of this item and would like to receive bulk pricing, please contact us directly and we will provide the best price possible.
